Review LKP-02 Clonable Transponders with VVDI Key Tool

Here we test and look at LKP-02 clonable/programmable transponders and Xhorse VVDI Key Toolcompatibility.

Note:
LKP-02 supports 4D-60/61/62/63(40bit/80bit)/64(4E), Chrysler/65/66/67/68/69/70/70E, 4C,Toyota G chip
This chip can be used to either generate new transponders with the Tango or to clone original keys.

Transponder Clone 4D
vvdi-key-tool-lkp-02-chip-1

vvdi-key-tool-lkp-02-chip-2

vvdi-key-tool-lkp-02-chip-3

vvdi-key-tool-lkp-02-chip-4

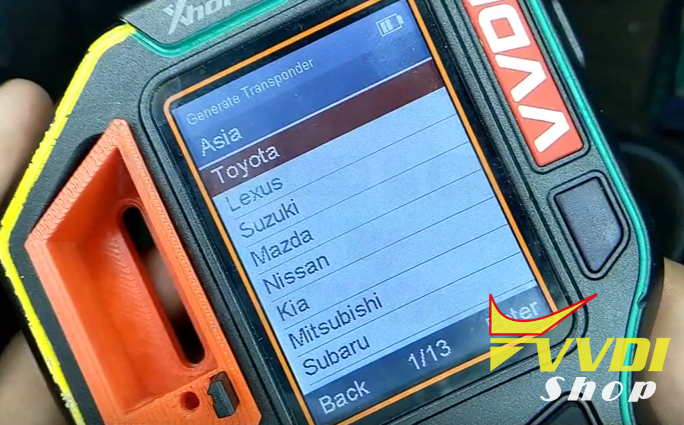

Generate Transponder (Toyota G chip), success
vvdi-key-tool-lkp-02-chip-5

vvdi-key-tool-lkp-02-chip-6

vvdi-key-tool-lkp-02-chip-7

vvdi-key-tool-lkp-02-chip-8

vvdi-key-tool-lkp-02-chip-9

vvdi-key-tool-lkp-02-chip-10

vvdi-key-tool-lkp-02-chip-11

Generate transponder Toyota ID67 All using TIRIS 4D-67
no problem
vvdi-key-tool-lkp-02-chip-12

vvdi-key-tool-lkp-02-chip-13

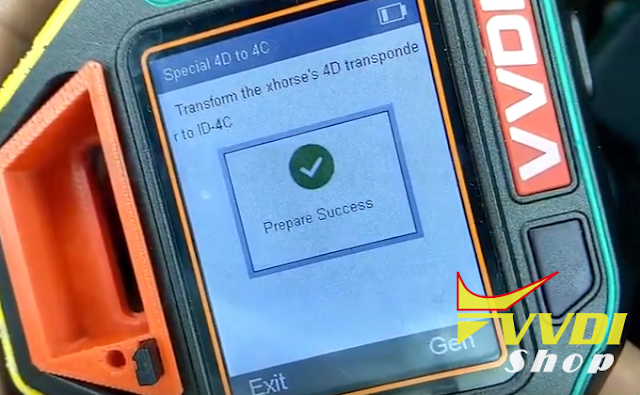

Special Functions (Special 4D to 4C)
Transform the Xhorse 4D transponder to ID-4C, without issue
vvdi-key-tool-lkp-02-chip-14

vvdi-key-tool-lkp-02-chip-15

vvdi-key-tool-lkp-02-chip-16

Will test and report more
