Program Jeep Grand Cherokee 2000 Key with VVDI2

How-to: Program Jeep Grand Cherokee 2000 immo key when all keys lost using Xhorse VVDI Prog and VVDI2 key programmer.

Step 1: Read mcu data
grand-cherokee-akl-vvdi2-1



grand-cherokee-akl-vvdi2-2



grand-cherokee-akl-vvdi2-3



Disassemble IMMO Box and desolder IC chip MC68HC908 with a hot gun
grand-cherokee-akl-vvdi2-4

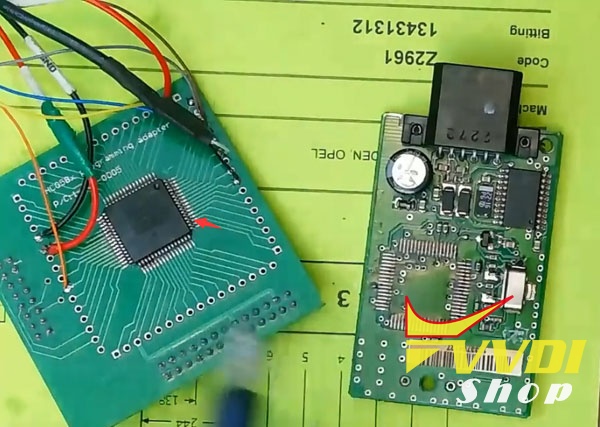

Solder MC68HC chip to VVDIProg HC058x programming adapter following wiring diagram

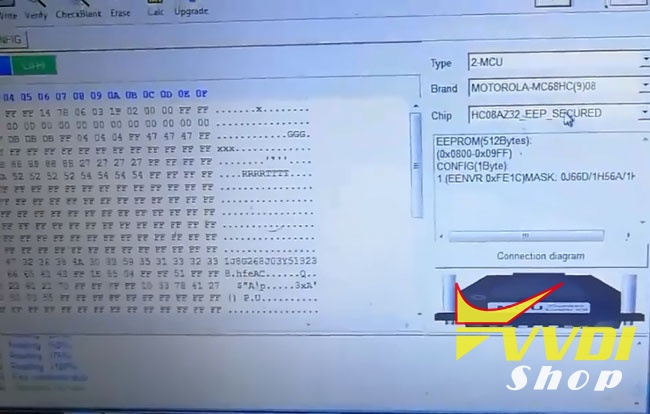

select Type 2 MCU->Motorola-MC68HC(9)08->HC08A232_EEP_SECURED
grand-cherokee-akl-vvdi2-5

Read and save dump data, i.e jeep 2000.bin
grand-cherokee-akl-vvdi2-6

grand-cherokee-akl-vvdi2-7



Step 2: Make dealer key
Open VVDI2 software, select Transponder Programmer->Immobilizer Data Tool
grand-cherokee-akl-vvdi2-8

Select vehicle information and load eeprom dump just saved
USA-Jeep->Grand Cherokee->1999-hc68hc08
grand-cherokee-akl-vvdi2-9

Select an unused key position and press Make Dealer Key
grand-cherokee-akl-vvdi2-10

Insert new transponder into VVDI2 key programmer
grand-cherokee-akl-vvdi2-11

Prepare dealer key success. It can start engine after write back new dump file or learn it to car.
grand-cherokee-akl-vvdi2-12

grand-cherokee-akl-vvdi2-13

Save new key dump file

Step 3: Write back new dump
Open VVDI Prog software
grand-cherokee-akl-vvdi2-14

Open new key dump file
Press Write
grand-cherokee-akl-vvdi2-15

Write data success
grand-cherokee-akl-vvdi2-16

Reinstall the immo box back to vehicle.
Now the new key can start vehicle.
