Xhorse newly introduced special function will read Toyota type H Immobilizer data via 8A adapter without having to dismantle the Immobilizer box. Toyota 8A all keys lost operation procedure is finally available here.
The whole operation steps:

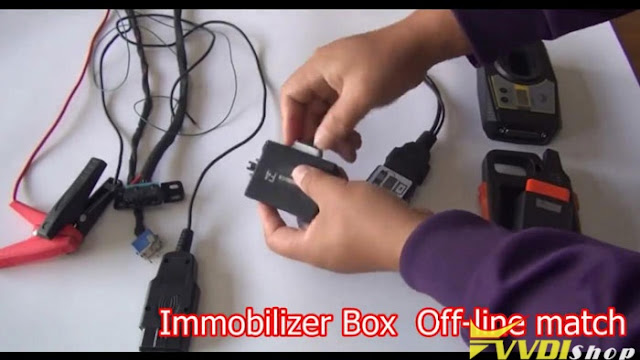

- Immobilizer Box off-line match

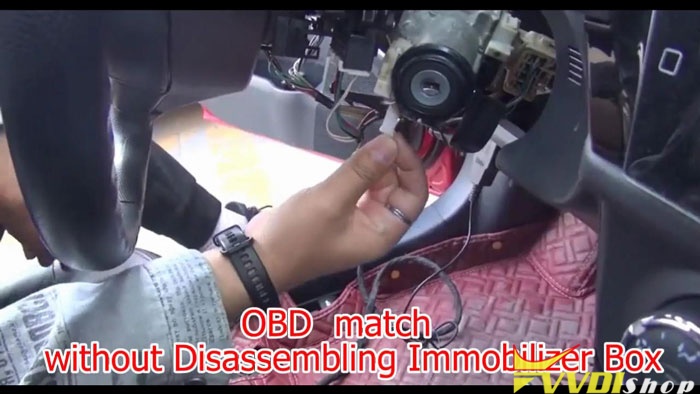

- OBD match: without disassembling immobilizer box.
1). Disconnect the battery positive.
2) Locate the #2 ignition switch relay position and unplug the relay at the same time.
3). Plug the vvdi device into the obd2 port of the Toyota car.
4). The connection of the VVDI2, Cable Vvdi Toyota 8A and the computer.
- Put VVDI super chip into vvdi2 key programmer
Click on “Check Toyota 8A adapter”, then “Immobox (8A all key lost- OBD Make master key directly)”.
The device completes automatically.
When the device prompts the completion of the operation, we also need to restore the vehicle and then start the vehicle for testing.
